XPM Challenge - Cyber Odyssey 2025 Finals
December 26, 2025
I am incredibly proud to have participated in the Cyber Odyssey 2025 Finals. A huge thanks to the organizers for putting together such a high-caliber event; the challenges were thoughtfully designed and offered a fantastic learning environment.
Our team, !BTATABNINA, secured 1st place and took the grand prize of $8,000 USD! While we had a successful run, I didn’t manage to solve the “XPM” reverse engineering challenge during the heat of the competition, so I’ve spent time upsolving it post-event to fully understand the logic behind it.
Attachments
- Recovered image: recovered.png
- Download pack: xpm.zip
1) Overview
The challenge binary reads a hidden XPM file (flag.xpm), generates two intermediate artifacts (header.bin and pixels.bin), and then runs an obfuscated VM. My goal was to reproduce the final image without executing the binary. I did this by:
- Decrypting
header.binwith the XXTEA VM. - Reversing the second VM to decode
pixels.bin. - Reassembling the final pixel grid using the recovered palette.
2) Tooling
- IDA Pro: Decompiler, xrefs, and data extraction.
- Python 3: Key derivation, XXTEA decryption, pixel decoding.
- Pillow (PIL): Image assembly and PNG output.
- CLI helpers:
file,strings,xxdto get quick context.
3) Files and Artifacts
chall # static ELF (stripped) - was given
header.bin # 5920 bytes (encrypted palette + metadata) - was given
pixels.bin # 311812 bytes (obfuscated pixels) - was given

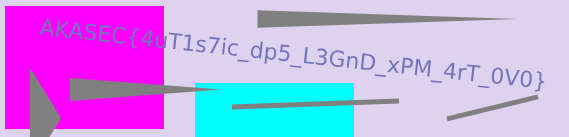

recovered.png # final reconstructed image (137x569) - recovered flag4) Initial Recon and Entry Point
I started with quick recon:
file challshows a statically linked, stripped 64‑bit ELF.strings challrevealed helpful hints: “Saved header.bin”, “pixels.bin”, and “Don’t debug me!”.
Next, I opened chall in IDA and followed the entrypoint. The _start stub calls __libc_start_main, passing a function at sub_401810 as the program entry (i.e., main).
Entry-point snippet:
401e71 mov rdi, offset sub_401810
401e78 call sub_403200 ; __libc_start_mainInside sub_401810, there’s a ptrace anti-debug check (the “Don’t debug me!” string is referenced here), but since I was not executing the binary, I simply noted it and moved on.
5) High-level Binary Behavior
After confirming sub_401810 is the main function, I traced its control flow. The structure is:
- Read and parse XPM data into a
qword_649340‑style structure. - Derive a 4‑word key (calls to
sub_402DF0,sub_402910,sub_402D60,sub_402880). - Invoke
sub_402A80to generateheader.bin. - Run
sub_401F80to decode pixel data (pixels.bin).
Key disassembly excerpt:
401919 call sub_402DF0
40191e mov ebx, eax
401920 call sub_402910
401925 mov r11d, eax
401928 call sub_402D60
40192d mov r10d, eax
401930 call sub_402880
401953 call sub_402A80
40199d call sub_401F80This gave me the two targets to reverse:
sub_402A80→ header encryption/decryptionsub_401F80→ pixel decoding
6) VM #1: XXTEA Decryptor (sub_402A80)
sub_402A80 is a bytecode VM. The bytecode is stored at 0x4E6520 (length 0x400). Dumping the bytes and searching for constants revealed the TEA delta 0x9E3779B9 in little-endian form (b9 79 37 9e).
That strongly suggested XXTEA. I confirmed the VM’s core math matched the standard XXTEA formula:
mx = (((z >> 5) ^ (y << 2)) + ((y >> 3) ^ (z << 4))) ^
((sum ^ y) + (k[(p & 3) ^ e] ^ z));I verified the VM behavior by reimplementing XXTEA in Python and matching outputs for random test vectors.
IDA Pro decompilation (sub_402A80)
unsigned __int64 __fastcall sub_402A80(__int64 a1, int a2, __int64 a3, double a4)
{
char *v4; // rdi
int *v5; // rsi
unsigned __int8 v6; // al
int v7; // eax
int v8; // eax
__int64 v9; // rax
int *v10; // rax
int v11; // edx
__int64 v12; // rax
int v13; // eax
bool v14; // al
bool v15; // al
unsigned __int64 result; // rax
__int64 v17; // rax
__int64 v18; // [rsp+8h] [rbp-180h] BYREF
int v19; // [rsp+14h] [rbp-174h] BYREF
__int64 v20; // [rsp+18h] [rbp-170h] BYREF
_BYTE v21[312]; // [rsp+20h] [rbp-168h] BYREF
unsigned __int64 v22; // [rsp+158h] [rbp-30h]
v20 = a1;
v4 = (char *)&unk_4E6520;
v19 = a2;
v5 = (int *)v21;
v18 = a3;
v22 = __readfsqword(0x28u);
LABEL_2:
while ( 2 )
{
v6 = *v4;
while ( 1 )
{
do
{
while ( 1 )
{
LABEL_3:
if ( v6 == 0xFF )
{
while ( 1 )
;
}
if ( v6 <= 0x70u )
break;
switch ( *v4 )
{
case 113:
case -66:
v7 = *v5 - *(v5 - 2);
++v4;
v5 -= 2;
*v5 = v7;
goto LABEL_2;
case 122:
++v4;
*(_QWORD *)v5 = (unsigned int)*v5;
goto LABEL_2;
case 125:
case -71:
++v4;
*v5 = **(_DWORD **)v5;
goto LABEL_2;
case -128:
++v4;
*(v5 - 2) <<= *v5;
v5 -= 2;
goto LABEL_2;
case -124:
++v4;
*((_QWORD *)v5 - 1) += *(_QWORD *)v5;
v5 -= 2;
goto LABEL_2;
case -103:
goto LABEL_10;
case -100:
v9 = *(_QWORD *)v5 * *((_QWORD *)v5 - 1);
++v4;
v5 -= 2;
*(_QWORD *)v5 = v9;
goto LABEL_2;
case -97:
v8 = *(_DWORD *)(v4 + 1);
switch ( v8 )
{
case 1:
*((_QWORD *)v5 + 1) = &v19;
break;
case 2:
*((_QWORD *)v5 + 1) = &v18;
break;
case 0:
*((_QWORD *)v5 + 1) = &v20;
break;
}
goto LABEL_7;
case -89:
v10 = *(int **)v5;
v11 = *(v5 - 2);
++v4;
v5 -= 4;
*v10 = v11;
goto LABEL_2;
case -64:
++v4;
*(_QWORD *)v5 = *v5;
goto LABEL_2;
case -56:
++v4;
v15 = *v5 > *(v5 - 2);
v5 -= 2;
*v5 = v15;
goto LABEL_2;
case -55:
++v4;
v14 = *(v5 - 2) < (unsigned int)*v5;
v5 -= 2;
*v5 = v14;
goto LABEL_2;
case -48:
++v4;
v13 = *v5 / *(v5 - 2);
v5 -= 2;
*v5 = v13;
goto LABEL_2;
case -26:
v12 = *(int *)(v4 + 1);
v5 += 2;
v4 += 5;
*(_QWORD *)v5 = &v21[v12 + 256];
goto LABEL_2;
case -22:
goto LABEL_6;
case -8:
case -2:
++v4;
goto LABEL_2;
default:
continue;
}
}
}
while ( v6 > 0x5Fu );
if ( v6 > 0x29u )
break;
switch ( v6 )
{
case 7u:
v4 += *(int *)(v4 + 1) + 1;
goto LABEL_2;
case 0x1Au:
v17 = *(_QWORD *)(v4 + 1);
v5 += 2;
v4 += 9;
*(_QWORD *)v5 = v17;
goto LABEL_2;
case 4u:
LABEL_10:
++v4;
*(v5 - 2) += *v5;
v5 -= 2;
goto LABEL_2;
}
}
switch ( *v4 )
{
case '*':
++v4;
*(v5 - 2) ^= *v5;
v5 -= 2;
continue;
case ':':
++v4;
*(_QWORD *)v5 = **(_QWORD **)v5;
continue;
case 'Y':
++v4;
*(v5 - 2) = (unsigned int)*v5 >> *(v5 - 2);
goto LABEL_36;
case 'Z':
LABEL_6:
v5[2] = *(_DWORD *)(v4 + 1);
LABEL_7:
v5 += 2;
v4 += 5;
continue;
case '[':
result = __readfsqword(0x28u) ^ v22;
if ( result )
sub_462F80(v4, v5, a4);
return result;
case '^':
++v4;
*(v5 - 2) &= *v5;
v5 -= 2;
continue;
case '_':
if ( *v5 )
v4 += *(int *)(v4 + 1) + 1;
else
v4 += 5;
LABEL_36:
v5 -= 2;
continue;
default:
goto LABEL_3;
}
}
}7) Key Derivation Functions
The XXTEA key is derived by four deterministic functions. I reimplemented each function exactly as IDA decompiled them, then combined their outputs:
key = [
0xcf522dcc,
0x40450656,
0x9f0f2ba6,
0x83636502
]These 4 dwords are used directly as the XXTEA key (little‑endian order).
8) Decrypting header.bin
header.bin is 5920 bytes → 1480 dwords.
I used standard XXTEA decryption:
DELTA = 0x9e3779b9
def mx(z,y,sum_,k,p,e):
return (((z>>5) ^ (y<<2)) + ((y>>3) ^ (z<<4))) ^ \
((sum_ ^ y) + (k[(p & 3) ^ e] ^ z))
def xxtea_decrypt(v,k):
v=v.copy()
n=len(v)
rounds = 6 + 52//n
sum_ = (rounds * DELTA) & 0xffffffff
y = v[0]
while sum_:
e = (sum_ >> 2) & 3
for p in range(n-1,0,-1):
z = v[p-1]
v[p] = (v[p] - mx(z,y,sum_,k,p,e)) & 0xffffffff
y = v[p]
z = v[n-1]
v[0] = (v[0] - mx(z,y,sum_,k,0,e)) & 0xffffffff
y = v[0]
sum_ = (sum_ - DELTA) & 0xffffffff
return vThe decrypted output is structured and includes the palette.
9) Header Layout and Palette Recovery
The decrypted header begins with four dwords:
width = 569
height = 137
ncolors = 164
cpp = 2Colors are stored in ncolors entries of size 0x24 bytes, starting at offset 0x10.
entry[0:cpp]= XPM symbol (ignored for reconstruction)entry[4:4+32]= ASCII color string (e.g.,#7B6DBE)
Example extraction:
for i in range(ncolors):
off = 0x10 + i*0x24
color = pt[off+4:off+4+32].split(b"\x00",1)[0].decode("ascii")I used these color strings to build:
palette[index] = (r, g, b)hash_to_idx[djb2(color_string)] = index
10) VM #2: Pixel Decoder (sub_401F80)
sub_401F80 is a second bytecode interpreter with a stack-based VM. The bytecode lives at 0x4E6120 (length 0x400). I mapped opcodes by aligning the bytecode with the decompiled interpreter logic.
Key VM behaviors:
- djb2 hash used to map color strings to indices
- LCG RNG (same constants as libc
rand()):
seed = (1103515245 * seed + 12345) & 0x7fffffff- Fisher‑Yates shuffle of indices
The djb2 hash appears explicitly in the VM call handler:
v38 = 5381;
while (*v53) {
v38 = v38*33 + *v53;
++v53;
}This confirmed the palette hash mapping logic.
IDA Pro decompilation (sub_401F80)
unsigned __int64 __fastcall sub_401F80(__int64 a1, __int64 a2, __int64 a3, __int64 a4, int a5, int a6)
{
unsigned __int8 *v6; // rbp
__m128i si128; // xmm0
char *v8; // rbx
__int64 v9; // rdi
unsigned __int8 v10; // al
__int64 v11; // rsi
__int64 v12; // rax
int v13; // eax
_DWORD *v14; // rax
_QWORD *v15; // rax
char *v16; // rax
int v17; // eax
bool v18; // al
unsigned __int64 result; // rax
bool v20; // al
__int64 *v21; // rax
int v22; // eax
_DWORD *v23; // rax
__int64 v24; // rax
int v25; // ecx
__int64 v26; // rdi
__int64 v27; // rsi
__m128i v28; // xmm1
__int64 v29; // rax
__int64 v30; // rdx
__m128i v31; // xmm2
signed int v32; // eax
int v33; // eax
unsigned int v34; // ecx
_DWORD *v35; // rax
__int64 v36; // rax
int v37; // eax
int v38; // ecx
_BYTE *v39; // rsi
int v40; // eax
char v41[264]; // [rsp+0h] [rbp-228h] BYREF
int v42; // [rsp+108h] [rbp-120h]
__int64 v43; // [rsp+110h] [rbp-118h]
__int64 v44; // [rsp+120h] [rbp-108h]
__int64 v45; // [rsp+130h] [rbp-F8h]
int v46; // [rsp+138h] [rbp-F0h]
__int64 v47; // [rsp+140h] [rbp-E8h]
__int64 v48; // [rsp+148h] [rbp-E0h]
__int64 v49; // [rsp+158h] [rbp-D0h]
__int64 v50; // [rsp+190h] [rbp-98h]
__int64 v51; // [rsp+198h] [rbp-90h]
int v52; // [rsp+1A4h] [rbp-84h]
_BYTE *v53; // [rsp+1A8h] [rbp-80h]
int v54; // [rsp+1B4h] [rbp-74h]
int v55; // [rsp+1C0h] [rbp-68h]
__int64 v56; // [rsp+1D0h] [rbp-58h]
__int64 v57; // [rsp+1D8h] [rbp-50h]
__int64 v58; // [rsp+1E0h] [rbp-48h]
__int64 v59; // [rsp+1E8h] [rbp-40h]
__int64 v60; // [rsp+1F0h] [rbp-38h]
unsigned __int64 v61; // [rsp+1F8h] [rbp-30h]
v6 = (unsigned __int8 *)&unk_4E6120;
si128 = _mm_load_si128((const __m128i *)&xmmword_4B9760);
v61 = __readfsqword(0x28u);
v8 = v41;
while ( 2 )
{
while ( 1 )
{
v9 = *v6;
v10 = *v6;
v11 = (unsigned __int8)(v9 - 47);
LABEL_3:
if ( v10 > 0x15u )
break;
if ( !v10 )
{
while ( 1 )
;
}
switch ( v10 )
{
case 0u:
case 2u:
case 4u:
case 5u:
case 6u:
case 7u:
case 8u:
case 9u:
case 0xAu:
case 0xBu:
case 0xCu:
case 0xDu:
case 0xEu:
case 0xFu:
case 0x10u:
case 0x11u:
case 0x13u:
goto LABEL_3;
case 1u:
v22 = *(_DWORD *)v8 * *((_DWORD *)v8 - 2);
++v6;
v8 -= 8;
*(_DWORD *)v8 = v22;
continue;
case 3u:
++v6;
*((_DWORD *)v8 - 2) ^= *(_DWORD *)v8;
v8 -= 8;
continue;
case 0x12u:
v23 = *(_DWORD **)v8;
LODWORD(a3) = *((_DWORD *)v8 - 2);
++v6;
v8 -= 16;
*v23 = a3;
continue;
case 0x14u:
switch ( *(_DWORD *)(v6 + 1) )
{
case 1:
dword_4E8990 = v42;
goto LABEL_17;
case 2:
v24 = sub_42F880(v43, v11, *(double *)si128.m128i_i64);
si128 = _mm_load_si128((const __m128i *)&xmmword_4B9760);
v44 = v24;
goto LABEL_17;
case 3:
v25 = v46;
v26 = v45;
LODWORD(v27) = v46 - 1;
if ( v46 <= 0 )
goto LABEL_67;
if ( (unsigned int)v27 <= 2 )
{
v32 = 0;
}
else
{
v28 = _mm_load_si128((const __m128i *)&xmmword_4B9750);
v29 = v45;
v30 = v45 + 16LL * ((unsigned int)v46 >> 2);
do
{
v31 = v28;
v29 += 16LL;
v28 = _mm_add_epi32(v28, si128);
*(__m128i *)(v29 - 16) = v31;
}
while ( v30 != v29 );
v32 = v25 & 0xFFFFFFFC;
if ( (v25 & 3) == 0 )
goto LABEL_55;
}
*(_DWORD *)(v26 + 4LL * v32) = v32;
a3 = 4LL * v32;
a5 = v32 + 1;
if ( v25 <= v32 + 1 )
{
LABEL_67:
if ( (int)v27 <= 0 )
goto LABEL_17;
}
else
{
v33 = v32 + 2;
*(_DWORD *)(v26 + a3 + 4) = a5;
if ( v25 > v33 )
*(_DWORD *)(v26 + a3 + 8) = v33;
}
LABEL_55:
v34 = dword_4E8990;
v27 = (int)v27;
do
{
a5 = v27 + 1;
a6 = *(_DWORD *)(v26 + 4 * v27);
v34 = (1103515245 * v34 + 12345) & 0x7FFFFFFF;
v35 = (_DWORD *)(v26 + 4LL * (v34 % ((int)v27 + 1)));
LODWORD(a3) = *v35;
*(_DWORD *)(v26 + 4 * v27--) = *v35;
*v35 = a6;
}
while ( (int)v27 > 0 );
dword_4E8990 = v34;
LABEL_17:
v6 += 5;
break;
case 4:
v36 = sub_4219C0(v47, v48);
si128 = _mm_load_si128((const __m128i *)&xmmword_4B9760);
v49 = v36;
goto LABEL_17;
case 5:
v37 = sub_401140(v50, v51, *(double *)si128.m128i_i64);
si128 = _mm_load_si128((const __m128i *)&xmmword_4B9760);
v52 = v37;
goto LABEL_17;
case 6:
v38 = 5381;
v39 = v53 + 1;
v40 = (char)*v53;
if ( *v53 )
{
do
{
++v39;
LODWORD(a3) = 32 * v38;
v38 += 32 * v38 + v40;
v40 = (char)*(v39 - 1);
}
while ( *(v39 - 1) );
}
v54 = v38;
goto LABEL_17;
case 7:
dword_4E8990 = (1103515245 * dword_4E8990 + 12345) & 0x7FFFFFFF;
v55 = dword_4E8990;
goto LABEL_17;
case 8:
sub_421AC0(v56, 4LL, 1LL, v57);
si128 = _mm_load_si128((const __m128i *)&xmmword_4B9760);
goto LABEL_17;
case 9:
sub_421320(v58);
si128 = _mm_load_si128((const __m128i *)&xmmword_4B9760);
goto LABEL_17;
case 0xA:
sub_42FE70(v59);
si128 = _mm_load_si128((const __m128i *)&xmmword_4B9760);
goto LABEL_17;
case 0xB:
sub_411AE0(v60, v11, a3, v9 - 47, a5, a6, v41[0]);
si128 = _mm_load_si128((const __m128i *)&xmmword_4B9760);
goto LABEL_17;
default:
goto LABEL_17;
}
break;
case 0x15u:
if ( *(_DWORD *)v8 )
v6 += *(int *)(v6 + 1) + 1;
else
v6 += 5;
LABEL_21:
v8 -= 8;
continue;
default:
goto LABEL_4;
}
}
LABEL_4:
switch ( (char)v9 )
{
case 47:
case 103:
v12 = *(_QWORD *)(v6 + 1);
v8 += 8;
v6 += 9;
*(_QWORD *)v8 = v12;
continue;
case 51:
++v6;
LODWORD(a3) = *(_DWORD *)v8 % *((_DWORD *)v8 - 2);
v8 -= 8;
*(_DWORD *)v8 = a3;
continue;
case 62:
v21 = (__int64 *)*((_QWORD *)v8 - 1);
a3 = *(_QWORD *)v8;
++v6;
v8 -= 16;
*v21 = a3;
continue;
case 69:
++v6;
v20 = *(_DWORD *)v8 < *((_DWORD *)v8 - 2);
v8 -= 8;
*(_DWORD *)v8 = v20;
continue;
case 91:
case -78:
++v6;
continue;
case 107:
v17 = *(_DWORD *)(v6 + 1);
if ( v17 )
{
if ( v17 == 1 )
*((_QWORD *)v8 + 1) = &unk_4E9A40;
}
else
{
*((_QWORD *)v8 + 1) = &qword_649340;
}
goto LABEL_16;
case 123:
case -58:
++v6;
*((_QWORD *)v8 - 1) += *(_QWORD *)v8;
v8 -= 8;
continue;
case 126:
v6 += *(int *)(v6 + 1) + 1;
continue;
case -113:
++v6;
v18 = *((_DWORD *)v8 - 2) == *(_DWORD *)v8;
v8 -= 8;
*(_DWORD *)v8 = v18;
continue;
case -109:
v15 = *(_QWORD **)v8;
a3 = *((_QWORD *)v8 - 1);
++v6;
v8 -= 16;
*v15 = a3;
continue;
case -106:
++v6;
*(_QWORD *)v8 = *(int *)v8;
continue;
case -103:
case -55:
++v6;
*(_DWORD *)v8 = **(_DWORD **)v8;
continue;
case -88:
*((_DWORD *)v8 + 2) = *(_DWORD *)(v6 + 1);
goto LABEL_16;
case -83:
++v6;
*((_DWORD *)v8 - 2) += *(_DWORD *)v8;
v8 -= 8;
continue;
case -81:
v14 = (_DWORD *)*((_QWORD *)v8 - 1);
LODWORD(a3) = *(_DWORD *)v8;
++v6;
v8 -= 16;
*v14 = a3;
continue;
case -77:
++v6;
*((_QWORD *)v8 - 1) *= *(_QWORD *)v8;
goto LABEL_21;
case -73:
v16 = &off_4E6800[*(int *)(v6 + 1)];
v8 += 8;
v6 += 5;
*(_QWORD *)v8 = v16;
continue;
case -32:
++v6;
LODWORD(a3) = *(_DWORD *)v8 % *((_DWORD *)v8 - 2);
v13 = *(_DWORD *)v8 / *((_DWORD *)v8 - 2);
v8 -= 8;
*(_DWORD *)v8 = v13;
continue;
case -14:
*((_QWORD *)v8 + 1) = &v41[*(int *)(v6 + 1) + 256];
LABEL_16:
v8 += 8;
goto LABEL_17;
case -13:
++v6;
*(_QWORD *)v8 = **(_QWORD **)v8;
continue;
case -7:
result = __readfsqword(0x28u) ^ v61;
if ( result )
sub_462F80(v9, v11, *(double *)si128.m128i_i64);
return result;
case -6:
++v6;
*((_QWORD *)v8 - 1) += *(int *)v8;
v8 -= 8;
continue;
default:
goto LABEL_3;
}
}
}11) Pixel Decoding Algorithm
I interpreted pixels.bin as an array of 32‑bit words:
N = len(pixels.bin) / 4 = 77953Since:
77953 = 137 * 569the pixel matrix is 137x569.
Seed initialization
The VM uses:
seed = N + ncolors = 77953 + 164 = 78117Shuffle
perm = list(range(N))
for i in range(N-1, 0, -1):
seed = (1103515245*seed + 12345) & 0x7fffffff
j = seed % (i+1)
perm[i], perm[j] = perm[j], perm[i]Decode each pixel word
for i, w in enumerate(words):
seed = (1103515245*seed + 12345) & 0x7fffffff
h = (w ^ seed) & 0xffffffff
idxs[perm[i]] = hash_to_idx[h]At this point, idxs is a palette index array of length N.
12) Image Reconstruction
The VM uses column‑major ordering, so reconstruction uses:
row = j % height
col = j // height
pixel[row * width + col] = idxs[j]Where:
width = 137
height = 569Mapping each index to the RGB palette yields to the image recovered.png.
13) Reproduction Scripts
Below is the full combined script I used to reproduce the image end‑to‑end:
import struct
from PIL import Image
def rol32(v,r):
return ((v<<r)&0xffffffff) | ((v&0xffffffff)>>(32-r))
def sub_402880():
v0=0; v1=0; v2=0; v3=0; v4=(0xffffffff & -559038737)
while True:
while True:
v5=rol32(v4,13)
v6=(74565 * ((v5+v3)&0xffffffff)) & 0xffffffff
v7=(v6 ^ v2) & 0xffffffff
v8=(v1 + ((v7<<7)&0xffffffff)) & 0xffffffff
v1=(v8 ^ v5) & 0xffffffff
v9=(v6 - (v7>>3)) & 0xffffffff
v3=(v7 + 5*v8) & 0xffffffff
v2=(v8 ^ ((v8 ^ v5)<<11)) & 0xffffffff
if v0 & 1: break
v0+=1
v4=(v9 + (v9 ^ v2) + 1) & 0xffffffff
if v0==1330: return (16716599*v4) & 0xffffffff
v0+=1
v4=((v9 ^ (v3+v1)) + 1) & 0xffffffff
if v0==1330: return (16716599*v4) & 0xffffffff
def sub_402910():
v0=0; v1=0; v2=0; v3=0; v4=263171840 & 0xffffffff
while True:
while True:
v5=rol32(v4,13)
v6=(74565 * ((v5+v3)&0xffffffff)) & 0xffffffff
v7=(v6 ^ v2) & 0xffffffff
v8=(v1 + ((v7<<7)&0xffffffff)) & 0xffffffff
v1=(v8 ^ v5) & 0xffffffff
v9=(v6 - (v7>>3)) & 0xffffffff
v3=(v7 + 5*v8) & 0xffffffff
v2=(v8 ^ ((v8 ^ v5)<<10)) & 0xffffffff
if v0 & 1: break
v0+=1
v4=(v9 + (v9 ^ v2) + 1) & 0xffffffff
if v0==10000: return (16716599*v4) & 0xffffffff
v0+=1
v4=((v9 ^ (v3+v1)) + 1) & 0xffffffff
if v0==10000: return (16716599*v4) & 0xffffffff
def sub_402D60():
v0=0; v1=0; v2=0; v3=0; v4=(-559030611) & 0xffffffff
while True:
while True:
v5=rol32(v4,13)
v6=(74565 * ((v5+v3)&0xffffffff)) & 0xffffffff
v7=(v6 ^ v2) & 0xffffffff
v8=(v1 + ((v7<<7)&0xffffffff)) & 0xffffffff
v1=(v8 ^ v5) & 0xffffffff
v9=(v6 - (v7>>4)) & 0xffffffff
v3=(v7 + 5*v8) & 0xffffffff
v2=(v8 ^ ((v8 ^ v5)<<11)) & 0xffffffff
if v0 & 1: break
v0+=1
v4=(v9 + (v9 ^ v2) + 1) & 0xffffffff
if v0==10000: return (16716599*v4) & 0xffffffff
v0+=1
v4=((v9 ^ (v3+v1)) + 1) & 0xffffffff
if v0==10000: return (16716599*v4) & 0xffffffff
def sub_402DF0():
v0=0; v1=0; v2=0; v3=0; v4=(-889275714) & 0xffffffff
while True:
while True:
v5=rol32(v4,13)
v6=(74565 * ((v5+v3)&0xffffffff)) & 0xffffffff
v7=(v6 ^ v2) & 0xffffffff
v8=(v1 + ((v7<<7)&0xffffffff)) & 0xffffffff
v1=(v8 ^ v5) & 0xffffffff
v9=(v6 - (v7>>3)) & 0xffffffff
v3=(v7 + 5*v8) & 0xffffffff
v2=(v8 ^ ((v8 ^ v5)<<11)) & 0xffffffff
if v0 & 1: break
v0+=1
v4=(v9 + (v9 ^ v2) + 1) & 0xffffffff
if v0==10000: return (16716599*v4) & 0xffffffff
v0+=1
v4=((v9 ^ (v3+v1)) + 1) & 0xffffffff
if v0==10000: return (16716599*v4) & 0xffffffff
key = [sub_402DF0(), sub_402910(), sub_402D60(), sub_402880()]
DELTA = 0x9e3779b9
def mx(z,y,sum_,k,p,e):
return (((z>>5) ^ (y<<2)) + ((y>>3) ^ (z<<4))) ^ \
((sum_ ^ y) + (k[(p & 3) ^ e] ^ z))
def xxtea_decrypt(v,k):
v=v.copy(); n=len(v)
rounds = 6 + 52//n
sum_ = (rounds * DELTA) & 0xffffffff
y = v[0]
while sum_:
e = (sum_ >> 2) & 3
for p in range(n-1,0,-1):
z = v[p-1]
v[p] = (v[p] - mx(z,y,sum_,k,p,e)) & 0xffffffff
y = v[p]
z = v[n-1]
v[0] = (v[0] - mx(z,y,sum_,k,0,e)) & 0xffffffff
y = v[0]
sum_ = (sum_ - DELTA) & 0xffffffff
return v
# Decrypt header
ct = open("header.bin","rb").read()
words = list(struct.unpack("<%dI" % (len(ct)//4), ct))
pt_words = xxtea_decrypt(words, key)
pt = struct.pack("<%dI" % len(pt_words), *pt_words)
ncolors = struct.unpack_from("<I", pt, 8)[0]
def djb2(s):
h = 5381
for c in s.encode("ascii"):
h = (h*33 + c) & 0xffffffff
return h
palette = []
hash_to_idx = {}
for i in range(ncolors):
off = 0x10 + i*0x24
color = pt[off+4:off+4+32].split(b"\x00",1)[0].decode("ascii")
if color.startswith("#"):
r = int(color[1:3],16)
g = int(color[3:5],16)
b = int(color[5:7],16)
else:
r=g=b=0
palette.append((r,g,b))
hash_to_idx[djb2(color)] = i
# Decode pixels.bin
b = open("pixels.bin","rb").read()
words = list(struct.unpack("<%dI" % (len(b)//4), b))
N = len(words)
seed = N + ncolors
# permutation
perm = list(range(N))
for i in range(N-1,0,-1):
seed = (1103515245 * seed + 12345) & 0x7fffffff
j = seed % (i+1)
perm[i], perm[j] = perm[j], perm[i]
idxs = [0]*N
for i, w in enumerate(words):
seed = (1103515245 * seed + 12345) & 0x7fffffff
h = (w ^ seed) & 0xffffffff
idxs[perm[i]] = hash_to_idx[h]
height = 569
width = 137
rgb = [None]*N
for j in range(N):
row = j % height
col = j // height
rgb[row*width + col] = palette[idxs[j]]
img = Image.new("RGB", (width, height))
img.putdata(rgb)
img.save("recovered.png")Result
The script above produces:
